Cold chain shipping boxes: choosing the right size

How do you choose a cold chain shipping box? Select cold chain shipping boxes from the product's required conditions, complete payload arrangement, journey duration and the evidence for a packaging configuration. Check usable internal dimensions and final outer dimensions separately before ordering.

The smallest box that physically closes is not necessarily the right system. Space may be reserved for coolant, separators, monitoring and protection. A supplier's qualified payload cavity can therefore be smaller than the empty space visible before the components are installed.

Start with the product and route, not a catalog volume

Record the permitted transport range and the period the package must support. Include staging before collection, transfer dwell and the time before the receiving team opens the package. The route assessment should use realistic operating conditions and a justified delay scenario.

Then define what the payload includes. Product cartons, racks, secondary containment and protective sleeves can change its dimensions. Use the final packed arrangement, not the dimensions of a single vial or the net volume of liquid. The person comparing systems needs one agreed payload description.

The Cold Chain Technologies parcel-shipper catalog distinguishes systems by payload volume, temperature, duration and operating model. Its range illustrates why size is only one selection variable. Obtain the detailed specification and evidence for the particular system under consideration.

Ask which measurement the supplier is quoting

A nominal volume can refer to different things. Ask whether it is the usable product space in the qualified configuration, the internal liner volume or another catalog measure. Obtain the usable length, width and height and any restrictions on orientation or loading.

Likewise, establish whether the stated gross weight includes the full coolant configuration and outer packaging. A freight estimate based on an empty container can change once the prepared system is weighed. Keep the package specification and transport quote based on the same assembled unit.

Measure the complete payload arrangement

What size cold chain box do you need? You need a system whose usable dimensions accommodate the approved payload layout and required protection while its thermal performance supports the intended journey. Compare geometry and configuration, not only the sum of product volumes.

Measure the final secondary packages in their permitted orientation. Include projections such as closures, handles or connectors. Identify whether cartons can be placed side by side or stacked. The product's handling instructions may rule out a layout that appears convenient in a volume calculation.

A worked fit example

Consider a hypothetical supplier configuration with a qualified usable payload space of 20 × 16 × 8 cm after its specified coolant and separators are installed. Each of the sender's secondary cartons measures 9 × 7 × 5 cm. These dimensions are invented to demonstrate the sizing method, not to specify a commercial shipper.

Four cartons arranged two by two in a single layer occupy a bounding space of 18 × 14 × 5 cm. Eight in the same footprint require two layers and a height of 10 cm. The eight-carton payload has less total geometric volume than the nominal cavity, yet its proposed layout is too tall.

The geometric check does not qualify either load. The supplier still needs to confirm permitted payload arrangement, protection, monitoring and thermal performance. Do not remove specified components to make the rejected layout fit.

Check dimensions again after assembly

Prepare a representative assembly under the approved instructions. Confirm the payload enters without forcing components out of position and that the lid closes as intended. A fit check can expose a measurement or assembly issue before the system reaches a dispatch deadline.

If protective materials are required around the payload, include them within the permitted layout. There is no universal cushioning allowance that works for every medical or laboratory product. Obtain the appropriate mechanical protection and preserve the system's thermal arrangement.

Account for coolant and insulation without changing the design

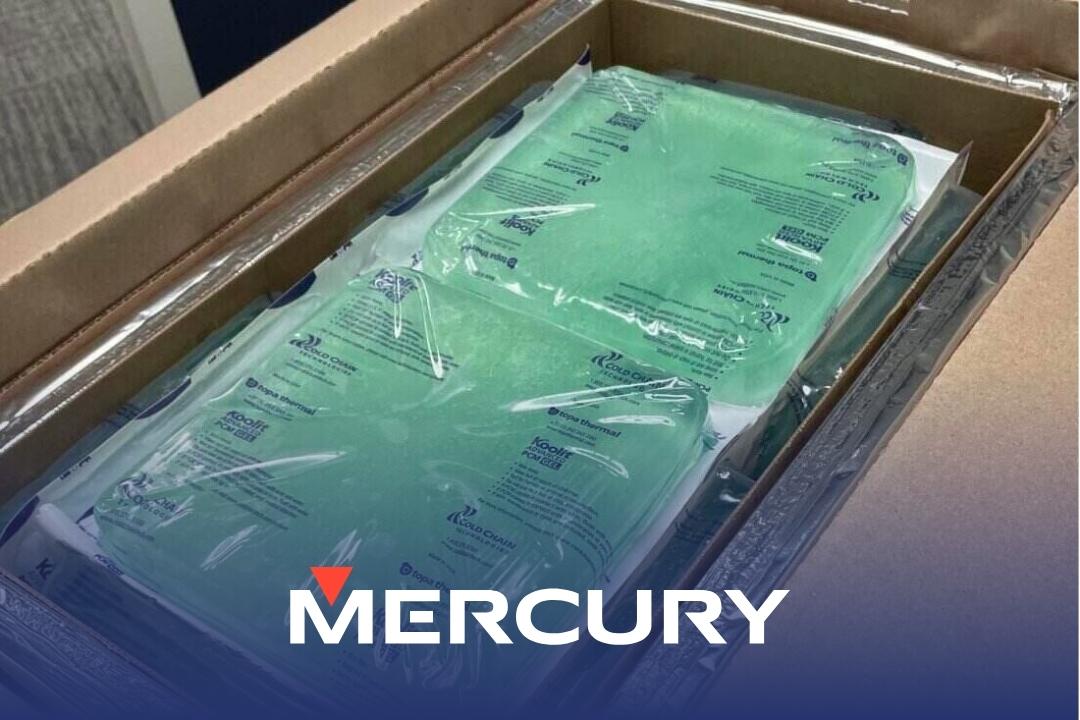

How do payload and coolant affect box size? The payload needs usable protected space, while the specified coolant and insulation occupy additional space and contribute to gross weight. Their arrangement determines which product cavity is supported. More coolant or less insulation is a design change, not a free sizing adjustment.

For temperature controlled shipping boxes, establish the exact component configuration associated with the payload range and duration. A liner made from a particular material does not have one universal hold time. Performance belongs to the assembled system under stated conditions.

Mercury's PCM packaging guide explains the preparation and placement of those components. Keep that information connected to the box specification so the packer does not select coolant independently from the chosen system.

Include preparation capacity in the size decision

A larger system may need more prepared components, handling space or conditioning capacity. Check whether the site can prepare and assemble it under the required procedure. A suitable catalog system can still be impractical if the dispatch operation cannot achieve its starting conditions.

The receiving site matters too. Confirm where the package will be opened, how the product transfers to its required storage and whether reusable components can be retained or returned. Choosing a system solely from the origin's packing bench can shift an unresolved problem to the destination.

Compare the main operating models

What types of temperature controlled shipping boxes exist? Options include single-use and reusable parcel systems, refrigerated or other specified temperature configurations, and larger pallet or bulk systems. They can use different insulation and refrigerant arrangements. Select the exact model from its supported payload and journey requirements.

Temperature controlled packaging boxes should be evaluated by their demonstrated use rather than their material label alone. A reusable design adds a recovery and inspection process, while a single-use design may fit a lane with limited return capability. Neither model automatically provides superior protection on every route.

When comparing temperature controlled boxes for shipping, use a consistent specification: required range, duration, usable cavity, allowed payload, gross dimensions and operating steps. Identify assumptions that differ between suppliers. A compact ready-to-use system and a larger system requiring local conditioning involve different preparation work.

Keep handling constraints visible

A temperature control box for shipping also needs to work within the carrier's handling and size conditions. Check lifting, parcel or pallet requirements, and the receiving equipment available. A system that performs thermally may still be unsuitable for a route if it cannot be handled as planned.

Measure the complete outer assembly, including any required pallet or protective casing. Record the final package count and weight. Do not estimate freight from product dimensions while ordering a much larger prepared shipper.

Decide when to use a bulk configuration

When do you need a bulk cold chain box? Consider a cold chain bulk shipping box when the order volume, handling method and route favor a larger consolidated system that the sender and receiver can manage. Compare it with the supported parcel alternatives rather than choosing bulk from volume alone.

A consolidated load can reduce the number of separate packages and their handoffs. It can also concentrate more product in one unit and require different handling equipment, receiving space or return arrangements. Evaluate those consequences alongside cost and thermal performance.

For a hypothetical repeated depot order, compare several qualified parcel loads with a qualified bulk configuration. Establish whether the receiving team can unload and transfer the complete payload within its process. If the order serves several destinations, a bulk unit may create an additional authorized split and repacking task.

Include external dimensions in the freight comparison

Among otherwise suitable systems, compare the packed outer measurements and gross weight. The FedEx dimensional-weight guide explains its use of dimensional versus actual weight. Verify the calculation and service conditions for the specific carrier and account.

Two cold chain box sizes with similar usable product space can occupy different external volumes. Insulation, component arrangement and outer protection affect that difference. A smaller external footprint may reduce a charge, but it does not justify choosing a configuration without evidence for the product and lane.

Mercury's temperature-controlled cost comparison includes preparation and returns as well as transport. Use that wider comparison after eliminating systems that do not meet the requirements.

Control changes after the first approved order

Retain the dimensions and layout used in the initial selection so later orders can be compared against them. A supplier's revised product carton, an added accessory or a new secondary container can change the fit even when the number of saleable units remains the same. Recheck those changes before dispatch rather than allowing the packer to force the old configuration to close.

Approve one reproducible pack-out

1. Define the product, conditions and complete journey.

2. Measure the permitted payload layout and supporting protection.

3. Compare supplier-qualified usable dimensions and configurations.

4. Check preparation, handling, receipt and external freight dimensions.

5. Record the approved arrangement and review later payload or route changes.

For how to choose a cold chain packaging system, the decisive evidence is the connection between the actual payload, supported configuration and intended use. Keep that connection visible in the working instruction so the next order does not become a new packing experiment.
