Protecting Diagnostic Kits in Transit
Diagnostic Testing Kits
Specialty Cold-Chain
Key takeaways
Diagnostic kit temperature control starts with the kit label, because FDA rules require reagent storage instructions and an expiration date based on them.
Packaging should be qualified for the kit's labeled range and the real door-to-door time on the lane, plus a buffer for delays.
A temperature excursion alert system pairs a sensor in the shipment with software that applies thresholds and notifies a named person who can act.
Monitoring is only as reliable as its calibration, sensor placement, alarm settings and connectivity, and real-time devices usually pause transmission in flight.
To verify a kit shipped correctly, keep the full temperature record, the packaging qualification and the release decision together.
Protecting diagnostic kits in transit comes down to three things: knowing the temperature range the kit is labeled for, packing it in a shipper that holds that range for the real length of the trip, and monitoring the shipment closely enough to act before a problem becomes a loss. Diagnostic kit temperature control fails most often not because the packaging is poor but because the trip took longer than the packaging was built for, and nobody noticed until the box was opened.
This article focuses on the prevention and detection side for diagnostic kits: reading stability labels, choosing packaging for ambient, refrigerated and frozen kits, and setting up monitoring and alerts that work. What a temperature excursion is and how to investigate one after it happens are covered in Mercury's separate guide to temperature excursions and how to respond to them.
How do you protect diagnostic kits from temperature excursions?
You protect diagnostic kits from temperature excursions by matching packaging to the kit's labeled storage range and the lane's real transit time, choosing a service level that keeps transit short, monitoring temperature during the trip, and setting alerts that reach someone who can intervene. Each layer covers a different failure, so the strongest programs use all four.
Start from the label. Confirm the storage range, any freeze or light sensitivity, and whether the kit has components with different requirements.
Qualify packaging for the lane. Use a shipper tested for the expected outside temperatures and a duration longer than the planned transit.
Shorten exposure. Pick a service that avoids weekend holds and long hub dwell times. Mercury's guide on choosing a service level for diagnostic shipping walks through the trade-offs.
Monitor the shipment. Add a data logger or a real-time tracker, depending on how much the kit is worth and how fast someone could act.
Plan the response. Decide in advance who receives alerts, who can authorize a reroute or coolant top-up, and how the receiving site will hold the kits until a decision is made.
Read the kit's stability labeling first
For in vitro diagnostic products sold in the US, the label already tells you most of what packaging needs to achieve. Under 21 CFR 809.10, reagent labeling must include storage instructions adequate to protect stability, covering conditions such as temperature, light and humidity where applicable, along with an expiration date based on those storage instructions or another way to tell whether the product still meets its standards.
That gives shippers a clear target. A kit labeled for 2 °C to 8 °C storage needs a refrigerated lane, not a "keep cool" box. A kit labeled for room temperature storage still has upper and lower limits, and summer trucks or winter tarmacs can exceed them. Kits that combine a frozen enzyme with room-temperature buffers may need to ship as separate components. If the label is unclear about transport conditions, ask the manufacturer for its shipping stability data before choosing packaging.
What packaging keeps diagnostic kits within their temperature range?
The packaging that keeps diagnostic kits within their temperature range is an insulated shipper with the right coolant, qualified for the kit's range and for a duration longer than the planned transit. Refrigerated kits usually ship with conditioned gel packs or phase change materials, frozen kits with dry ice, and ambient kits with insulated shippers designed for controlled room temperature.
The table below compares common options by kit storage range.
Kit storage range | Typical packaging | Main risk in transit | What to check |
|---|---|---|---|
Controlled room temperature | Insulated shipper, sometimes with phase change material conditioned to room temperature | Heat in summer trucks and cold on winter tarmacs | Performance in both seasonal profiles, not only summer |
Refrigerated (2 °C to 8 °C) | Insulated shipper or vacuum insulated panel box with gel packs or phase change material | Freezing from poorly conditioned coolant, warming after the qualified duration ends | Coolant conditioning steps, pack-out instructions, qualified hours |
Frozen | Insulated shipper with dry ice | Dry ice sublimating before delivery during a delay | Dry ice quantity for the full duration plus buffer, replenishment options |
Point-of-care kits shipped in small quantities | Small qualified shippers sized to the kit count | Too much empty space or too little thermal mass in an oversized box | Right-sized box, kit position away from coolant contact |
Qualification is what turns a box into a reliable shipper. ISTA's thermal test procedures, including ISTA 7D and Standard 7E, describe how to evaluate the effect of outside temperature profiles on packaged products, and they give shippers and suppliers a shared way to compare performance. Ask your packaging supplier which profile and duration the shipper was tested against, and whether that matches your actual lanes.
Packaging for point-of-care diagnostic kits
Packaging for point-of-care diagnostic kits has its own challenges. These kits often go to clinics, pharmacies or patients' homes in small quantities, where nobody is waiting at a loading dock and a package may sit at a door or in a mail room. Choose a shipper sized to the actual kit count, because an oversized box with little product has less thermal mass and swings faster. Keep refrigerated kits from touching frozen coolant directly. Add clear outer markings and receiving instructions, and pick a delivery service that requires a signature or delivers to a staffed location. For pack-out options, Mercury compares phase change materials and dry ice, and its shipping supplies store carries insulated shippers for different ranges.
How does a temperature excursion alert system work?
A temperature excursion alert system works by placing a sensor in or near the kits, sending its readings to a software platform, comparing each reading against thresholds set for that product, and notifying named people by email, text or dashboard when a threshold or a trend rule is triggered. The value is in the last step: an alert only helps if it reaches someone with the authority to act while the shipment can still be saved.
The pieces usually fit together like this:

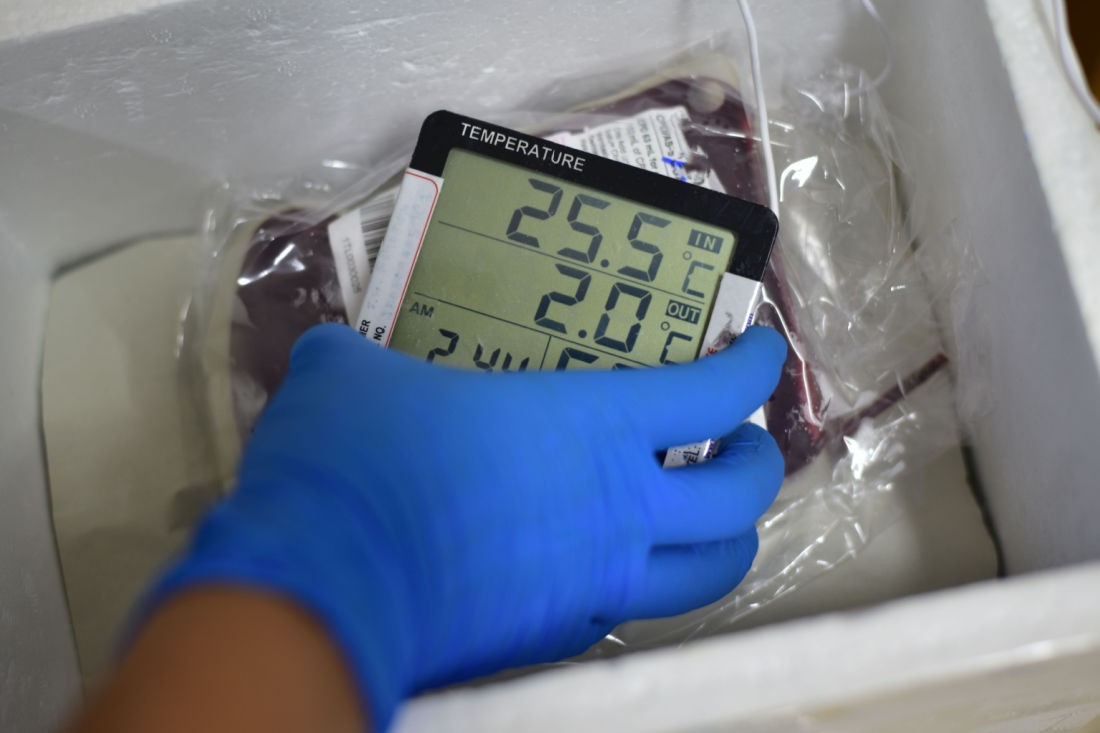

The sensor. A device records temperature at a set interval. Some also record humidity, light, shock or location.
Connectivity. Real-time devices transmit over cellular networks during the trip. Standard data loggers store readings and are read after delivery.
Temperature excursion alert software. The platform holds the product profile, applies alarm rules and keeps an audit trail of readings and acknowledgements.
Alarm rules. Good setups use more than one level, such as a warning band inside the labeled range and an alarm at the limit, plus time-based rules for brief spikes.
The response. A named person acknowledges the alert and decides whether to reroute, add coolant, hold the shipment or tell the receiving site to quarantine on arrival.
Proactive excursion detection uses the warning band and the shipment's location together. A reading drifting upward while the package sits at a hub on a hot afternoon is a reason to call before the limit is crossed. Location also tells you whether a dry ice replenishment or a pickup is physically possible. Mercury's articles on 5G GPS trackers and temperature monitoring devices explain the hardware options in more detail.
Choosing between data loggers and real-time trackers
Temperature excursion monitoring does not always need a real-time device. A data logger gives a complete record for release decisions and is cheaper per shipment. A real-time tracker adds the chance to intervene during the trip. A reasonable rule is to use real-time devices on high-value kits, long or multi-leg lanes, and shipments where someone could actually act on an alert, and use loggers or indicators where the only realistic action is to quarantine on arrival.
How reliable are monitoring systems at detecting temperature excursions?
Monitoring systems are reliable at detecting temperature excursions when the device is calibrated across the range it is used in, the sensor is placed where it reflects the kits, the alarm settings match the product, and the data reaches someone in time. Each of those conditions can fail, so reliability is a property of the whole setup, not only of the device.
The WHO technical supplement on temperature and humidity monitoring systems for transport operations sets out useful expectations. Single-use devices should come with a manufacturer's calibration certificate covering the full temperature range they are designed for, because they cannot be recalibrated. Multiple-use devices should be calibrated against a certified, traceable reference standard once a year unless otherwise justified. The supplement also notes that accuracy and performance vary between manufacturers, so devices should be selected against a written user requirement.
When comparing monitoring systems, temperature excursion reliability depends on a few practical checks:
Stated accuracy and the temperature range over which it applies, with a calibration certificate.
Recording interval short enough to catch a meaningful event for that kit.
Sensor position inside the payload, not against the coolant or the box wall.
Alarm thresholds and delays set from the kit's stability data, not a generic default.
Behavior when connectivity is lost, including whether readings are stored and uploaded later.
Connectivity is the gap most teams overlook. FAA guidance for cargo tracking devices, Advisory Circular 91.21-1D, expects devices that do not meet aircraft emission limits to have independent means of turning off cellular functions when airborne. In practice, real-time trackers usually stop transmitting during flights and upload stored readings after landing, so a flight leg is not monitored live. Plan alerts around the ground legs, where an intervention is possible. Recordkeeping rules for regulated products are covered in Mercury's guide to FDA temperature monitoring rules.
Can you verify that a temperature-sensitive kit was shipped correctly?
Yes. You can verify that a temperature-sensitive kit was shipped correctly by reviewing the complete temperature record from the device that traveled with it, confirming the readings stayed within the labeled range for the whole trip, and checking that the packaging, pack-out and transit time matched the qualified configuration. If any of those pieces is missing, the shipment cannot be fully verified.
Verification works best when it is built into receiving. The receiving site checks the indicator or downloads the logger before the kits go into storage, records the result, and holds the shipment if the data is missing or shows a deviation. The WHO supplement recommends using go or no-go indicator results to decide whether to accept a consignment or quarantine it until an investigation and final disposition, and keeping downloaded time and temperature data for at least three years in a retrievable format. Your quality system and customer agreements may require longer.
A complete verification file for one shipment typically includes:
The device serial number, calibration certificate and full reading history.
The packaging configuration and its qualification report.
The pickup, handoff and delivery times from the carrier or courier.
Any alerts, who acknowledged them and what action was taken.
The receiving check result and the release or quarantine decision.
When data shows a deviation, the decision about whether kits can still be used belongs to the manufacturer's quality team, based on stability data. The investigation steps are part of the excursion response process covered in the linked guide above.
Putting it together for your kit program
A sound program for protecting diagnostic kits in transit uses the label to set the target, qualified packaging to hold it, a service level that keeps transit short, monitoring matched to the kit's value and the lane, and a receiving check that closes the record. Review the setup when a new lane opens, when seasons change, and after any alert. Mercury's diagnostic test kit shipping team handles refrigerated, frozen and ambient kits and can review packaging and monitoring choices for a specific lane.
